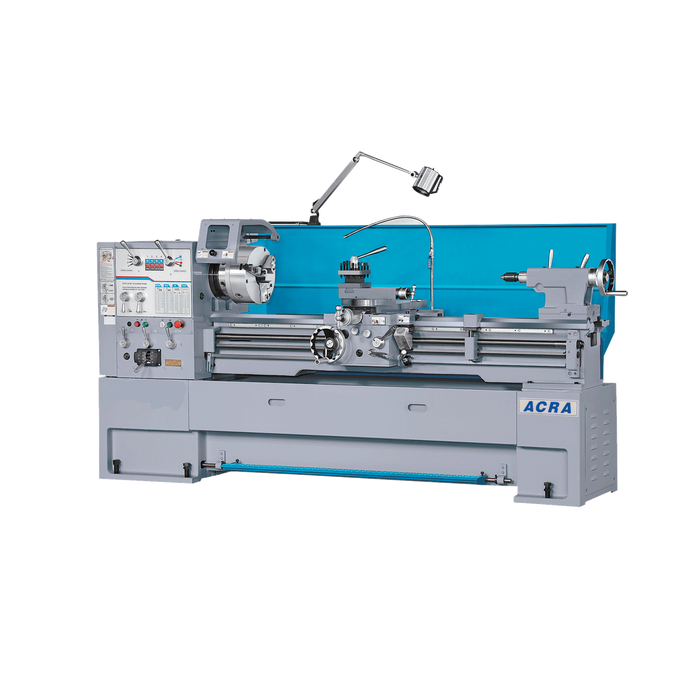

1460TE Precision Gap Bed Engine Lathe (8 Speed)
In Stock and Ready to Ship
All orders are shipped within 1-2 business days. Product Eta 5-7 business days
Description
Acra’s 1460TE Precision Gap Bed Engine Lathes are made in Taiwan and feature the following:
Bed & Stand:
- One Piece Cast Iron Floor Stand With Foot Brake
- Front Removable Chip Tray Floor Stand Or Rear Chip Floor Stand Selected
- Bed Width (10-1/4″), Bed Meehanite Casting, Vibration Stress Relieved
- Induction hardened And Precision Ground Bed Ways
- Precision Hand Scraped Removable Gap Bed
Headstock:
- Dynamic Balanced Spindle
- Spindle Is Supported By 3 Points Precision Bearings-2 Taper Roller And 1 Ball Bearing
- Housing Are Properly Stabilized & Deflection Free
- All Gears & Shafts Are Made By Chromium Molybdenum Steel With Segmentation And Precision Ground
- EVS Models Forced Lubrication System
- Nylon Safety Gears In End Train
Spindle:
- Machined From Forged Alloy Steel, Hardened Ground & Dynamically Balance
- Three Point Support By High Grade Precision Machine Tool Taper Roller & Ball Bearings
Universal Gear Box:
- Induction Hardened And Ground Gears And Shafts
- Wide Threads Cutting Capacity For Imperial, Metric, Module Pitch And Diametrical Pitch
Apron:
- Right Hand Side Or Left-Hand Size Apron. Hand-Wheel Available As Requested
- Integrated Automatic Device For Longitudinal & Cross Feeds, Forward And Reverse Feeds
Carriage & Slide:
- Anti-Float Design, Backlash Eliminator Fitted In Cross Slide Nut
- Safety Clutches At Feed Shaft Lever
- Dual Reading Dials
- One Shot Lubrication For Carriage And Tops Slide
Specifications:
Capacity: 14″/21″ x 60″
Swing Over Bed: 14-3/16″
Swing Over Cross Slide: 8-3/8″
Swing In Gap: 21″
Distance Between Centers: 60”
Bed Width: 10-1/4″
Headstock:
Spindle Nose: D1-6
Spindle Bore: 2-1/16″
Taper of Spindle: MT NO.6
Spindle Speeds: (8 Speeds)
Spindle Speeds – Range: 70 ~ 1800 RPM
Carriage:
Cross Slide Travel: 8-11/16″
Compound Slide Travel: 5-1/2″
Threads & Feeds:
Inch Threads: 2 ~ 72 TPI
Metric Threads: 0.2 ~ 14 mm
Longitudinal Feeds: 0.002 ~ 0.067″/rev
Cross Feeds: 0.001 ~ 0.034″/rev
Tailstock:
Quill Diameter:2″
Quill Travel: 6″
Quill Taper: MT NO.4
POWER Spindle Drive Motor: 5 HP
Voltage: 230/460V AC / 3 PH
Standard Equipment:
- 8″ 3-Jaw Chuck
- 10″ 4-Jaw Chuck
- Steady/Follow Rest
- Halogen Light
- Coolant System
- 4 Way Tool Post
- Full Length Splash Guard
- Chuck Guard
| Weight | 3800 lbs |
|---|---|
| Dimensions | 102 × 42 × 58 in |
| Face Plate |
$350.00 |
| Micro Bed Stop |
$300.00 |
| Taper Attachment |
$1,500.00 |
| Taper Attachment Installation |
$425.00 |
| Lever Type 5C Collet Closer JFK |
$1,500.00 |
| Import Collet Closer (Taiwan) |
$1,000.00 |
| Newall Digital Readout 8"x60" DP700 |
$2,900.00 |
| Newall Digital Readout 8"x60" NMS300 |
$1,350.00 |
| Acu-Rite Digital Readout 8"x60" 203 |
$2,625.00 |
| Acu-Rite Digital Readout 8"x60" 303 |
$3,025.00 |
| Mitutoyo Digital Readout |
$1,620.00 |
| Fagor Digital Readout |
$P.O.R |
| Digital Readout Installation (All Models) |
$250.00 |
| Aloris Tool Post Set (CXA) 5pc |
$1,065.00 |
| Import Quick Change Tool Holder |
$450.00 |
| Live Center MT#4 |
$100.00 |
