ACRA 1400SVS PRECISION VARIABLE SPEED LATHE
In Stock and Ready to Ship
All orders are shipped within 1-2 business days. Product Eta 5-7 business days
Description
Acra’s 1440SVS Precision Variable Speed Gap Bed Engine Lathe features the following:
- 1-1/2″ hole through spindle.
- Heavy duty geared head; hardened and ground gears.
- Hardened and ground bed-way.
- Open type chip tray can be pulled out easily to remove chip.
- 5 H.P. (3.75Kw) Three phase main motor.
- Foot Brake giving rapid braking.
- Emergency stop button equipped on the front of headstock.
- Jog button for easy gear engagement and inching spindle.
- Extra safety switch shuts down machine entirely for changing belt or gear for threading cutting.
Specifications:
Capacity: 14″/20″ x 40″
Swing Over Bed: 14″
Swing Over Cross Slide: 8-5/8″
Swing In Gap: 20″
Distance Between Centers: 40″
Bed Width: 8-1/2″
Headstock:
Spindle Nose: D1-4
Spindle Bore: 1-1/2″
Taper of Spindle: MT NO.5
Spindle Speeds – Steps: Variable Speed 2 step
Spindle Speeds – Range: 30 ~ 2,500 RPM
Carriage:
Cross Slide Travel: 6-1/2″
Compound Slide Travel: 4″
Threads & Feeds:
Inch Threads: 1~56 TPI
Metric Threads: 0.45 ~ 7.5 mm
Longitudinal Feeds: 0.0011 ~ 0.0543″/rev
Cross Feeds: 0.0003 ~ 0.0181″/rev
Tailstock:
Quill Diameter: 1-9/16″
Quill Travel: 4-3/4″
Quill Taper: MT #3
Power:
Spindle Drive Motor: 5 HP
Voltage: 230/460V AC /3 PH
Standard Equipment:
Additional information
| Weight | 2100 lbs |
|---|---|
| Dimensions | 71 × 32 × 51 in |
| Face Plate |
$250.00 |
| Taper Attachment |
$1,250.00 |
| Taper Attachment Installation |
$425.00 |
| Lever Type 5C Collet Closer JFK |
$1,250.00 |
| Import Collet Closer (Taiwan) |
$900.00 |
| Newall Digital Readout 8"x40" DP700 |
$2,280.00 |
| Newall Digital Readout 8"x40" NMS300 |
$1,100.00 |
| Acu-Rite Digital Readout 8"x40" 203 |
$2,220.00 |
| Acu-Rite Digital Readout 8"x40" 303 |
$2,620.00 |
| Mitutoyo Digital Readout |
$1,450.00 |
| Sony Digital Readout |
$P.O.R |
| Fagor Digital Readout |
$P.O.R |
| Digital Readout Installation |
$250.00 |
| Aloris Tool Post Set (BXA) 5pc |
$830.00 |
| Import Quick Change Tool Holder |
$375.00 |
| Live Center MT#3 |
$75.00 |
| EVS Variable Speed Drive 460V |
$275.00 |
- 6″ 3-Jaw Chuck
- 8″ 4-Jaw Chuck
- Stead/Follow Rest
- Coolant System
- 4 Way Tool Holder

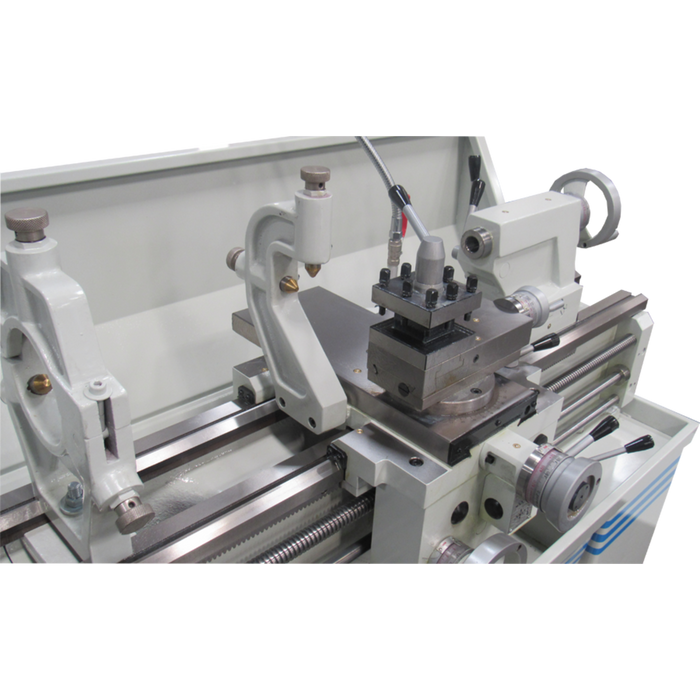

- Full Length Splash Guard
- Micro Bed Stop
- Halogen Light
- Foot Brake
- Chuck Guard
