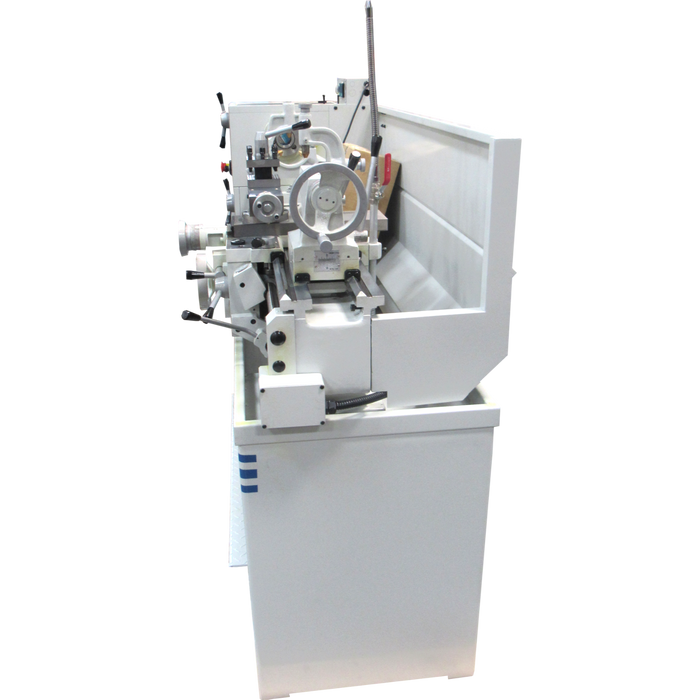

Acra 1340BV Precision Variable Speed Gap Bed Engine Lathe
In Stock and Ready to Ship
All orders are shipped within 1-2 business days. Product Eta 5-7 business days
Specification:
Capacity: 13″/18″ x 40″
Head:
Swing Over Bed: 13″
Swing Over Cross Slide: 8-1/4″
Distance Between Centers: 40″
Center Height: 6-1/2″
Bed:
Bed Width: 7-1/2″
Swing In Gap: 18-1/2″
Length of Gap: 9-1/2″
Width of Front of Face Plate: 6″
Spindle:

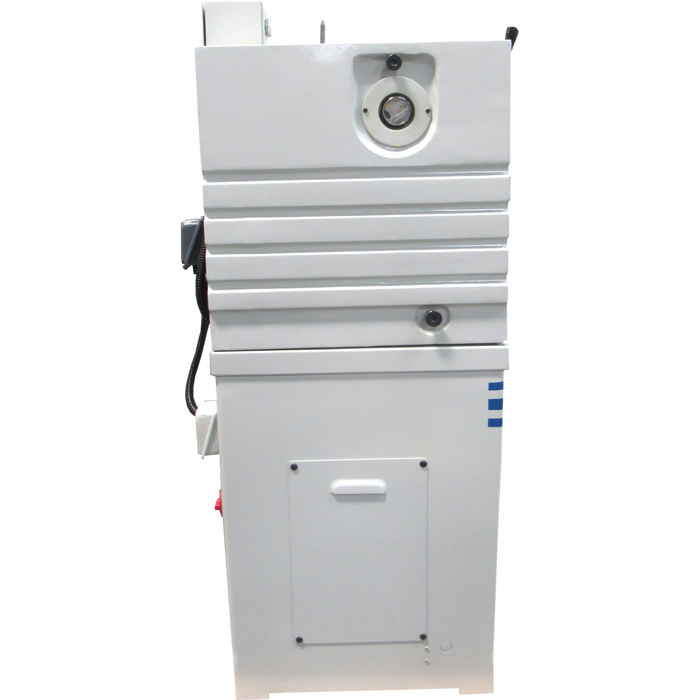

Spindle Bore: 1-9/16″
Spindle Nose: D1-4
Spindle RPM: 40 – 2, 000 (Variable Speed)
Taper of Spindle Nose: MT#5
Tool Slide:
Cross Slide Travel: 6-3/4″
Top Slide Travel: 3-1/2″
Maximum Cutting Tool Size: 1/2″

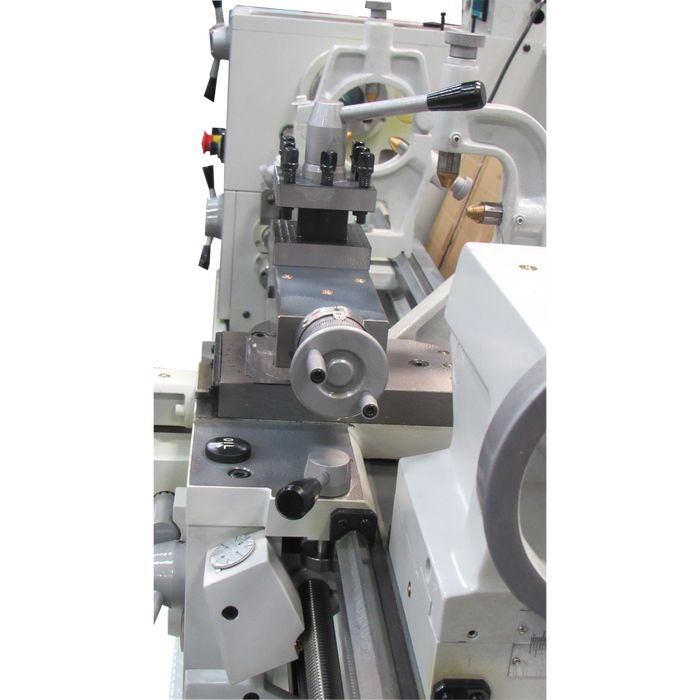

Tailstock:
Tailstock Travel: 4″
Tailstock Taper: MT#3
Diameter of Tailstock: 1-9/16″
Thread:
Lead Screw Diameter and Pitch: 1″ Dia., 4mm Pitch
Inch Threads(8): 3~24 TPI
Metric Threads(21): 0.50~10mm
Feeds:
Feed Rod Diameter: 3/4″ Dia.
Longitudinal Feeds(21): 0.040~0.800mm/rev.
Cross Feeds(21): 0.020~0.400mm/rev.

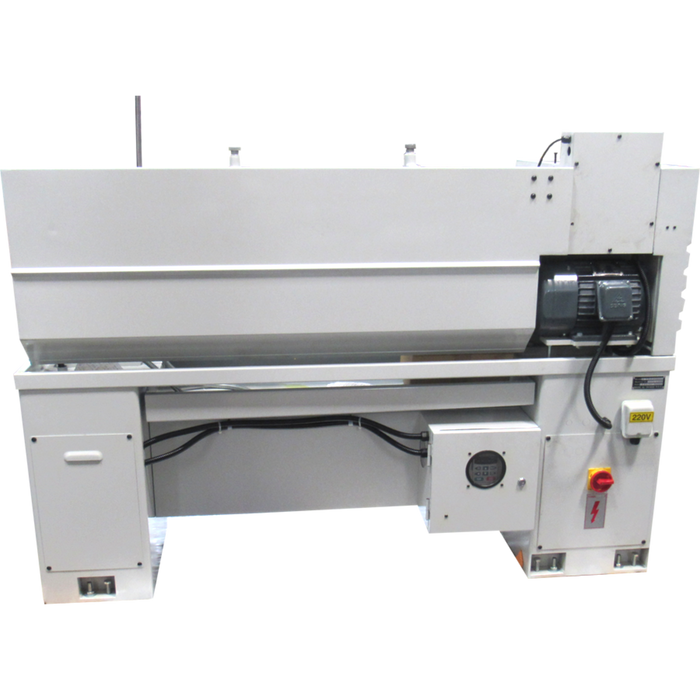

Motor:
Spindle Motor: 3 HP
Coolant Pump Motor: 1/8 HP
Voltage: 230V AC~1 Phase or 3 Phase
Standard Equipment:
- 6″ 3 Jaw Chuck
- 8″ 4 Jaw Chuck

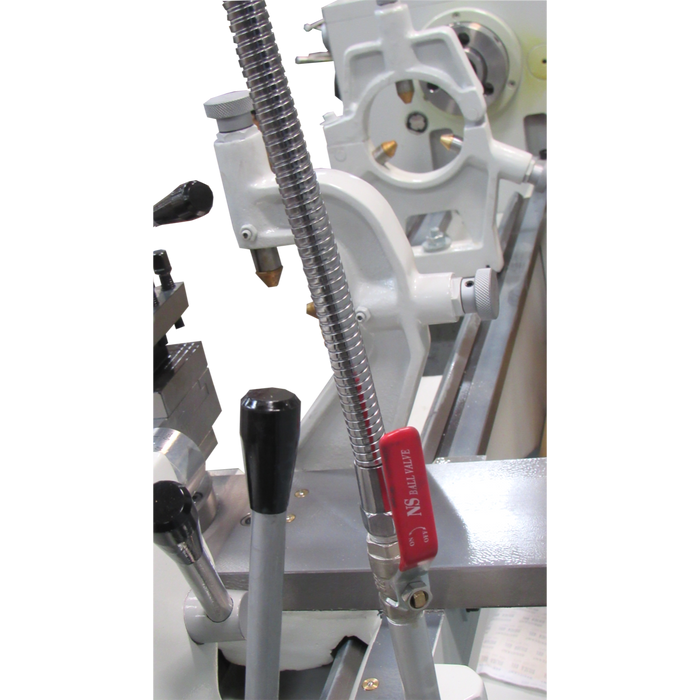

- Steady/Follow Rest
- Coolant System
- 4 Way Tool Holder
- Full Length Splash Guard
- Micro Bed Stop
- Halogen Light
- Foot Brake
- Chuck Guard
Description
Acra’s 1340BV Precision Variable Speed Gap Bed Engine Lathe is equipped with an electronically controlled Variable Speed Inverter control.

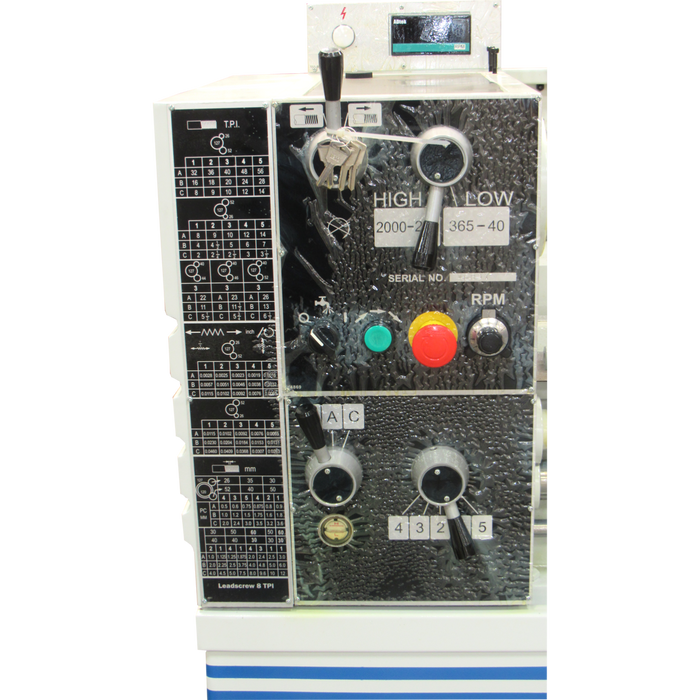

- 2 speed change 40-365 r.p.m. & 218-2000 r.p.m.
- Close type Headstock, Gearbox and Apron have inner oil reservoir in which lubrication worked by splashing lubricant.
- Hardened and ground gear in headstock. 40mm, (1-9/16″) hole through spindles.
- Spindle supported with 2 precision taper roller bearings.
Additional information
| Weight | 1600 lbs |
|---|---|
| Dimensions | 72 × 29 × 47 in |
| Face Plate |
$250.00 |
| Taper Attachment |
$1,250.00 |
| Taper Attachment Installed |
$275.00 |
| Lever Type 5C Collet Closer JFK |
$1,250.00 |
| Import Collet Closer (Taiwan) |
$900.00 |
| Newall Digital Readout 8"x40" DP700 |
$2,280.00 |
| Newall Digital Readout 8"x40" NMS300 |
$1,100.00 |
| Acu-Rite Digital Readout 8"x40" 203 |
$2,220.00 |
| Acu-Rite Digital Readout 8"x40" 303 |
$2,620.00 |
| Mitutoyo Digital Readout |
$1,450.00 |
| Sony Digital Readout |
$P.O.R |
| Fagor Digital Readout |
$P.O.R |
| Digital Readout Installation |
$250.00 |
| Aloris Tool Post Set (BXA) 5pc |
$830.00 |
| Import Quick Change Tool Holder |
$375.00 |
| Live Center MT#3 |
$75.00 |
| EVS Variable Speed Drive 460V |
$275.00 |
- With longitudinal and cross automatic feeding systems.
- The feed road and hand-wheel for apron are equipped with adjustable safety overload slipping clutch to ensure proper cutting load.

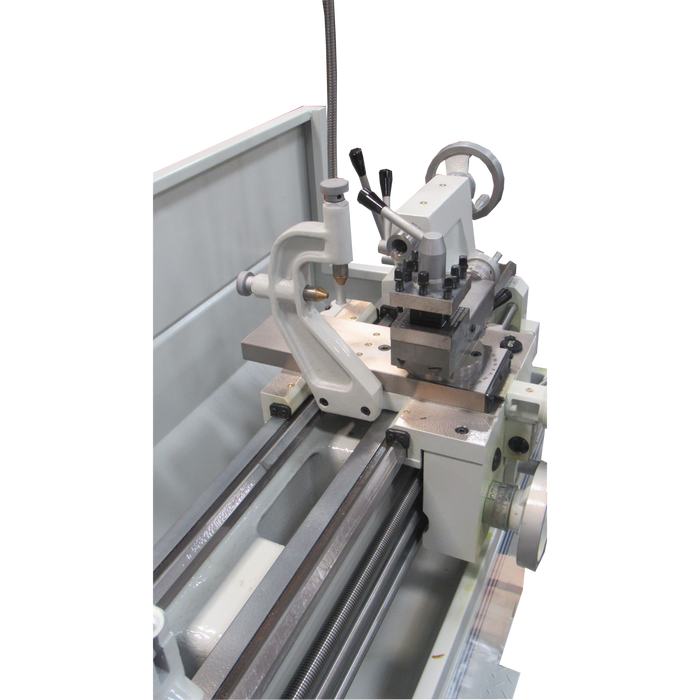

- Lathe bed made of high tensile cast iron in rigid structure is hardened and ground.
- Lathe is equipped with a Electric brake and foot brake giving rapid braking.
- Tool cabinet mounted between two floor stands accompanied with lock can be put in all accessories and tools, safe and administrate conveniently.
- Outside shape designed under entirely consideration, neat and beautiful outlook.
- All control knobs are located on the front of headstock, control easily.
